羅茨真空泵有多少個型號？8款型號參數齊全

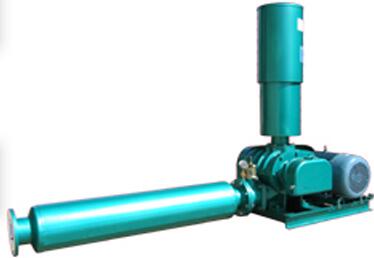

今天我們來跟大家說一下，在羅茨泵的選型中，具體有哪些型號！首先說下羅茨泵其實就是羅茨真空泵的縮短了的念法，不同的地區對羅茨真空泵的叫法不一樣，所以在后面的文章中就已簡單的來進行描述！羅茨泵的工作原理就是利用的羅茨鼓風機的進氣口，通過吸空氣來達到吸的效果，而正壓所產生的壓力在這里也邊成了負壓。在運轉的原理上是與羅茨風機是一樣的！羅茨泵一般主要是有8個型號，CSR-80V、CSR100V、CSR125V、CSR150V、CSR175V、CSR200V、CSR250V、CSR300V！這幾個型號是我們?nèi)粘Ｊ褂帽容^多的幾個，下面我們?yōu)槟沓隽似渲?0型號和100型號的具體詳細參數表！方便您能夠直觀的理解和選擇出適合自己型號的參數。如果在選型上還有不了解的，或者對羅茨泵的應用與設計不明白的，可以隨時聯系公司的業務人員為您專業的指導！
【CSR80V型號性能參數表】
【CSR100V型號性能參數表】
后續將陸續更新，完整版的參數表！
【CSR80V型號性能參數表】
| 轉速 | 壓力Kpa | 流量m3/min | 電機型號 | 功率kw | 重量kg |
| 1130 | -13.3 | 2.92 | Y100L1-4 | 2.2 | 227 |
| -19.9 | 2.79 | Y100L1-4 | 2.2 | ||
| -26.6 | 2.65 | Y100L1-4 | 2.2 | ||
| -33.3 | 2.5 | Y100L2-4 | 3 | ||
| 1240 | -13.3 | 3.29 | Y100L1-4 | 2.2 | 238 |
| -19.9 | 3.15 | Y100L1-4 | 2.2 | ||
| -26.6 | 3 | Y100L2-4 | 3 | ||
| -33.3 | 2.85 | Y100L2-4 | 3 | ||
| -39.9 | 2.69 | Y112M-4 | 4 | ||
| -46.6 | 2.62 | Y112M-4 | 4 | ||
| 1300 | -13.3 | 3.49 | Y100L1-4 | 2.2 | 238 |
| -19.9 | 3.35 | Y100L1-4 | 2.2 | ||
| -26.6 | 3.2 | Y100L2-4 | 3 | ||
| -33.3 | 3.05 | Y100L2-4 | 3 | ||
| -39.9 | 2.89 | Y112M-4 | 4 | ||
| -46.6 | 2.82 | Y112M-4 | 4 | ||
| 1370 | -13.3 | 3.73 | Y100L1-4 | 2.2 | 253 |
| -19.9 | 3.59 | Y100L1-4 | 2.2 | ||
| -26.6 | 3.44 | Y100L2-4 | 3 | ||
| -33.3 | 3.29 | Y112M-4 | 4 | ||
| -39.9 | 3.13 | Y132S-4 | 5.5 | ||
| -46.6 | 3.06 | Y132S-4 | 5.5 | ||
| 1470 | -13.3 | 4.03 | Y100L1-4 | 2.2 | 253 |
| -19.9 | 3.89 | Y100L2-4 | 3 | ||
| -26.6 | 3.74 | Y100L2-4 | 3 | ||
| -33.3 | 3.59 | Y112M-4 | 4 | ||
| -39.9 | 3.43 | Y132S-4 | 5.5 | ||
| -46.6 | 3.35 | Y132S-4 | 5.5 | ||
| 1570 | -13.3 | 4.35 | Y100L1-4 | 2.2 | 253 |
| -19.9 | 4.21 | Y100L2-4 | 3 | ||
| -26.6 | 4.07 | Y112M-4 | 4 | ||
| -33.3 | 3.92 | Y132S-4 | 5.5 | ||
| -39.9 | 3.77 | Y132S-4 | 5.5 | ||
| -46.6 | 3.66 | Y132S-4 | 5.5 |
【CSR100V型號性能參數表】
| 轉速 | 壓力Kpa | 流量m3/min | 電機型號 | 功率kw | 重量kg |
| 1070 | -13.3 | 4.35 | Y100L2-4 | 3 | 290 |
| -19.9 | 4.06 | Y100L2-4 | 3 | ||
| -26.6 | 3.8 | Y112M-4 | 4 | ||
| -33.3 | 3.57 | Y112M-4 | 4 | ||
| 1160 | -13.3 | 4.83 | Y100L2-4 | 3 | 315 |
| -19.9 | 4.56 | Y100L2-4 | 3 | ||
| -26.6 | 4.29 | Y112M-4 | 4 | ||
| -33.3 | 4.03 | Y132S-4 | 5.5 | ||
| -39.9 | 3.78 | Y132S-4 | 5.5 | ||
| -46.6 | 3.63 | Y132M-4 | 7.5 | ||
| 1240 | -13.3 | 5.27 | Y100L2-4 | 3 | 315 |
| -19.9 | 4.99 | Y112M-4 | 4 | ||
| -26.6 | 4.72 | Y112M-4 | 4 | ||
| -33.3 | 4.46 | Y132S-4 | 5.5 | ||
| -39.9 | 4.2 | Y132S-4 | 5.5 | ||
| -46.6 | 4.07 | Y132M-4 | 7.5 | ||
| 1320 | -13.3 | 5.8 | Y100L2-4 | 3 | 315 |
| -19.9 | 5.54 | Y112M-4 | 4 | ||
| -26.6 | 5.27 | Y132S-4 | 5.5 | ||
| -33.3 | 5.01 | Y132S-4 | 5.5 | ||
| -39.9 | 4.74 | Y132M-4 | 7.5 | ||
| -46.6 | 4.58 | Y132M-4 | 7.5 | ||
| 1480 | -13.3 | 6.51 | Y100L2-4 | 3 | 315 |
| -19.9 | 6.28 | Y112M-4 | 4 | ||
| -26.6 | 6.05 | Y132S-4 | 5.5 | ||
| -33.3 | 5.82 | Y132S-4 | 5.5 | ||
| -39.9 | 5.6 | Y132M-4 | 7.5 | ||
| -46.6 | 5.47 | Y132M-4 | 7.5 | ||
| 1580 | -13.3 | 6.99 | Y100L2-4 | 3 | 360 |
| -19.9 | 6.77 | Y112M-4 | 4 | ||
| -26.6 | 6.55 | Y132S-4 | 5.5 | ||
| -33.3 | 6.33 | Y132M-4 | 7.5 | ||
| -39.9 | 6.1 | Y132M-4 | 7.5 | ||
| -46.6 | 5.96 | Y132M-4 | 7.5 | ||
| 1700 | -13.3 | 7.57 | Y112M-4 | 4 | 360 |
| -19.9 | 7.37 | Y132S-4 | 5.5 | ||
| -26.6 | 7.16 | Y132S-4 | 5.5 | ||
| -33.3 | 6.95 | Y132M-4 | 7.5 | ||
| -39.9 | 6.73 | Y132M-4 | 7.5 | ||
| -46.6 | 6.6 | Y160M-4 | 11 |
后續將陸續更新，完整版的參數表！
